Ransohoff immerso jet ultrasonic rotary parts washer


* Ultrasonic Immersion Rotary Basket Parts Washer
* Production: Six Cycles Per Hour
* Baskets: One 6 x 9 x 12 (O.S.) Basket
* Basket Rotation: Variable from 0 to 17 RPM
* Sump Capacity: Wash Cycle - 18gal / Rinse Cycle - 16gal
* Heat Source: Screw Plug Immersion/Convection Heaters, 460-3-60 V
* Operating Temps (Farenheit) - Wash-140deg / Rinse-140deg / Blow-Off-200deg / Line Rinse-Ambient
* Tank and Housing - #10 Ga. 304 STN STL
* Solution Piping - SCH. 40 304 STN STL
* Fresh Water Piping - SCH 40 304 STN STL
* Sound Limitations: 85DBA
* Insulation: #14 GA Sheet Metal Machine Cover-Line w/1" Soundmat
* Power: 460V / 3PH / 60Hz
* Additional Installed Options...
* Line Rinse to Rinse - 15 GPM
* Wash and Rinse Filtration
* Wash and Rinse Ultrasonic Cleaning
* Access Door w/Light and Window
* ***I also have the full parts list available. If necessary, I can fax a copy to you.
___________________________________________________________________________________
Some BASIC INFO on Ransohoff's Immerso Jet models...
Designed to fit into your cellular work area or the smaller production environment, the Immerso-Jet Midi and HC-series systems clean using our patented washing and rinsing process of agitation, spray impingement, hydraulic purging through immersion, and heated blow-off drying. Our patented "triple action" batch cleaning process was developed specifically to process a broad range of challenging parts, especially those with internal bores and passages. In addition, the Immerso-Jet systems are designed to be equipped with ultrasonics if desired.
Standard Immerso-Jet systems can process from 2, 4, 6, or 8 baskets per cycle. Parts are processed in the industry standard Kadon style basket designed to hold and protect your delicate parts during the entire cleaning process.
The systems have been thoughtfully engineered and manufactured from the ground up to be flexible, durable, simple to use and easy to maintain.
Fully automatic operation - Base machines are fully customizable (sequence times and temperature) and have the ability to store multiple user programs.
Totally enclosed self-ventilating process - operator is not exposed to vapors or mists found in other cleaning processes.
Cross contamination of wash solutions are minimized by our unique divert drain system which handles inter-stage solution management. This feature is combined with quick release drain actuators that rapidly discharge contaminant-laden solution to the tanks and away from your clean parts.
Stainless steel, heavy duty welded construction will endure a lifetime of continuous usage in the industrial environment.
More information on Ransohoff can be found at http:// /rotary.html
___________________________________________________________________________________

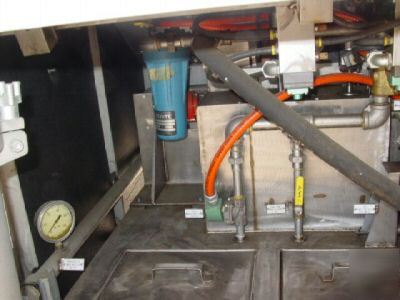

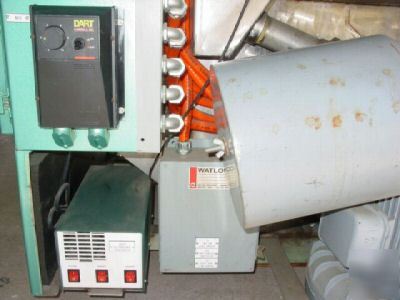

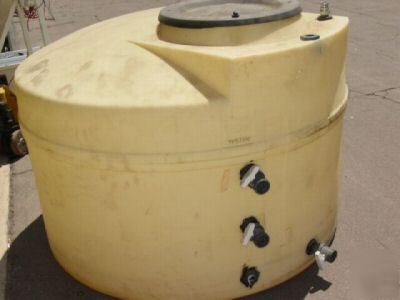

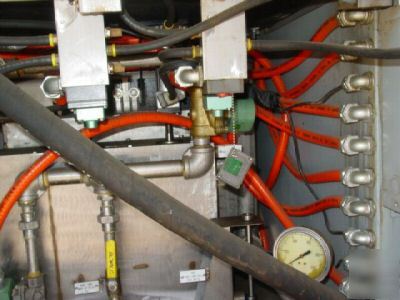

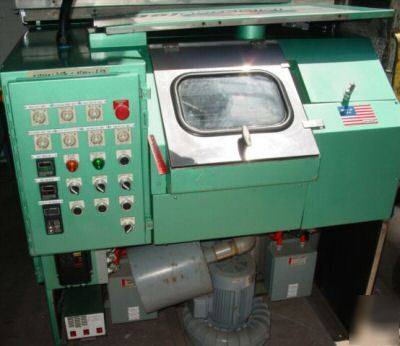

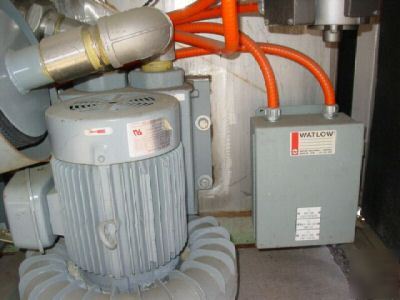

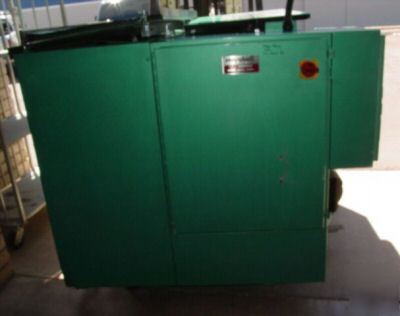

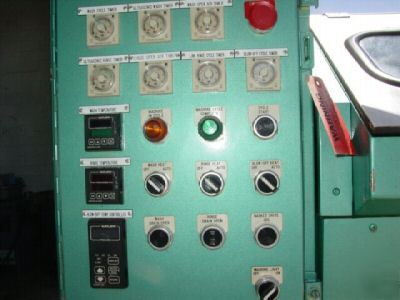

You'll be getting the exact unit pictured. This is used, but in good condition.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) @ (***) 972-1346 (toll free) or (***) 980-6114 (cell).
